Product Details:
|
| Product Name: | Glass Wool Tube With Aluminum Foil Veneer | Function: | Therminal Insulation |
|---|---|---|---|
| Color: | Yellow | Thickness: | 50mm |
| Width: | 60mm | Length: | 1000mm |
| High Light: | Hydrophobic steam pipe insulation wrap,Hydrophobic Aluminum Foil Glass Wool Tube,Steam Pipe Insulation Glass Wool Tube |
||

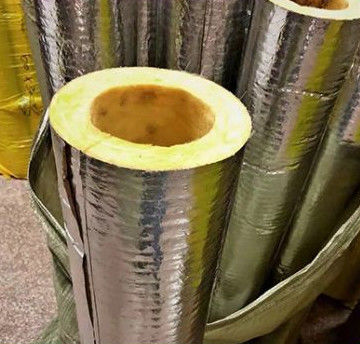

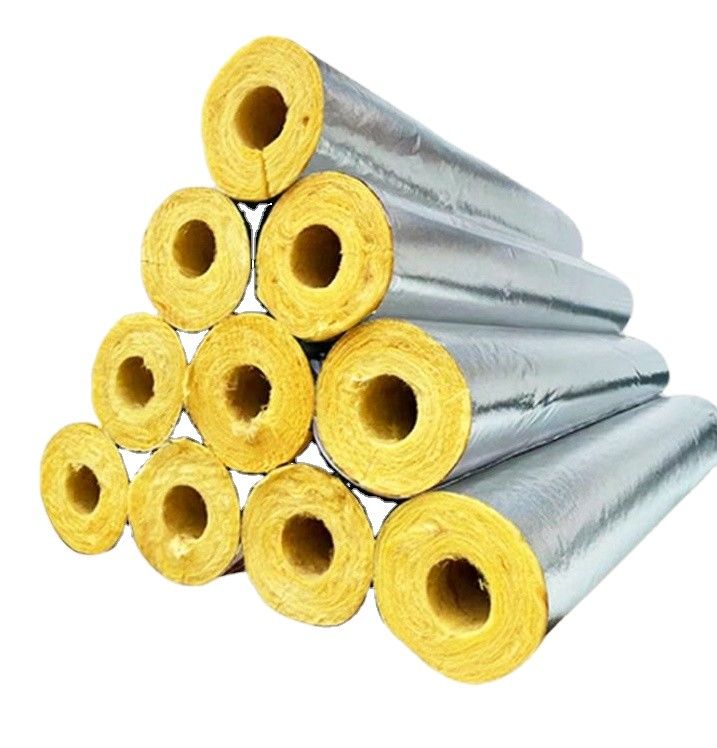

Aluminum foil veneer glass wool tube belongs to a kind of artificial inorganic fiber, using quartz sand, limestone, dolomite and other natural ores as the main raw materials, with some soda, borax and other chemical raw materials into glass. In the melting state, with the help of external blowing into a flocculent fine fiber, fiber and fiber for three-dimensional cross, intertwined with each other, showing many small gaps.
2.Characteristics
Fire performance: Glass wool series products have the highest fire rating -- Grade A, fully in line with the relevant national fire prevention requirements, to ensure the safety of buildings, ensure the safety of users' lives and property.
Thermal insulation performance: uniform fiber distribution and more slender fiber, so that the product has lower thermal conductivity, to ensure superior thermal insulation performance and other superior performance indicators, to ensure the long-term thermal insulation effect of the product.
Environmental performance: Glass wool series products are inorganic thermal insulation materials made of colorless flat glass and quartz sand as the main raw materials, as green building materials, construction waste can be recycled, fully in line with environmental protection requirements.
Acoustic performance: Internal porous structure, so that it has superior sound absorption ability, greatly improve the comfort of indoor environment.
Structural seismic performance: Because the fiber is fine and long, the overall structure has high strength, excellent tensile and vibration resistance. Whether installed or used for a long time, it is not easy to sag, scatter or collapse.
3.Specification
| Project Solution Capability | Total solution for projects, Others |
| After-sale Service | Online technical support, Other |
|
Warranty
|
5 years
|
|
Place of Origin
|
Chongqing, China,
|
|
Brand Name
|
HaiKe
|
|
Thermal Conductivity
|
≤0.035w/(m.k)
|
|
Length
|
1000mm
|
|
Density
|
40-100kg/m3
|
|
Material
|
Glass Fiber
|
|
Hydrophobic
|
98.2%
|
|
Thickness
|
30-150mm
|
|
Function
|
Thermal Preservation
|
|
The inner diameter
|
22-610mm
|
|
Color
|
Yellow
|
|
Shape
|
Tube
|
4.Scope of application
Used for all kinds of pipe (including: freezing, hot water, steam) system insulation, can work normally in the ambient temperature of -4℃-454℃, exposed, hidden. Because the pipe sleeve of this material has the characteristics of waterproof, anti-corrosion, no mold, no insects, so it can effectively prevent condensation, prevent freezing of pipes, is widely used in civil buildings, heating pipes, air conditioning, refrigeration equipment insulation. Heat insulation, energy saving effect can be increased by 15-30%.
5.FAQ
(1) who are we?
We are based in Chongqing, China, start from 2015,sell to Southeast Asia(20.00%),North America(10.00%),South
America(10.00%),Eastern Europe(10.00%),Africa(10.00%). There are total about 51-100 people in our office.
(2) How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;
(3) what can you buy from us?
Heat preservation,Material,Duct insulation,The walls are filled with cotton,Steel structure insulation and others.
(4) why should you buy from us not from other suppliers?
Our company is a professional company specializing in research and development, production and sales of thermal insulation
materials, with a number of patents, national new technology enterprises, with a complete and scientific quality management
system.
(5) what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Italian
Chongging Haike Thermal Insulation Material Co..Ltd.is located in Yuzhong District, Chongging City. It is a national high-tech enterprise that develops technical processes and equipment related to glass wool manufacturing, and sells thermal insulation materials.
It is a specialized and new enterprise in Chongging, and has a number of inventions. Patents and utility model patents and national computer software copvrights. and also have a complete and scientific quality management system.
The main products sold by the company are: centrifugal glass wool and products. formaldehyde-free environmentally friendly glass wool,light steel structure insulation cotton, etc., and has OEM factories in Chengdu,Sichuan,Qingyuan,Guangdong,Guangde Anhui,and Jiulongpo District, Chongging City. With processing and storage bases.
The company's series of products are widely used in construction petrochemical. electronics, electric power.metallurgyautomobile
energy,aerospace. transportation and other fields,and their thermal insulation. sound absorption and noise reduction effects are very significant.
Over the vears, Chongging Haike Thermal Insulation Material Co. Ltd.has been highly recognized by the industry for its integrity strength and product quality. Friends from all walks of life are welcome to visit, guide and negotiate business.
