Product Details:
|
| Product Name: | Glass Wool Tube Aluminum Foil Veneer | Density: | 10-96kg/m3 |
|---|---|---|---|
| Thickness: | 30-200mm | Length: | 1000mm |
| Suitable For Pipe Outer Diameter: | 600mm | Levels: | A1 |
| Thermal Conductivity: | 0.034-0.044w/mk | Hydrophobic: | 98.2% |
| Service Temperature: | 600 | Low Temperature Bending ≤: | 0.02 |
| High Light: | A1 Sound Absorbing Thermal Insulation Tube,Insulation Tube Fiber Glass Wool Veneer,A1 Thermal Insulation Tube Veneer |
||

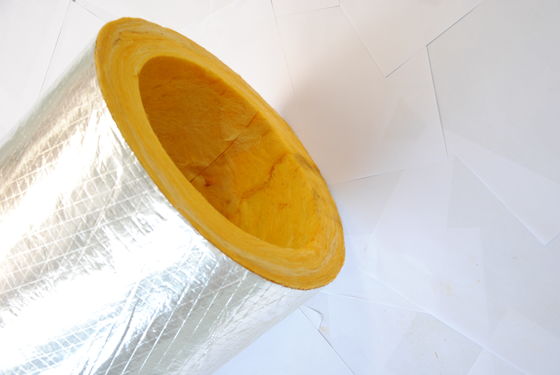

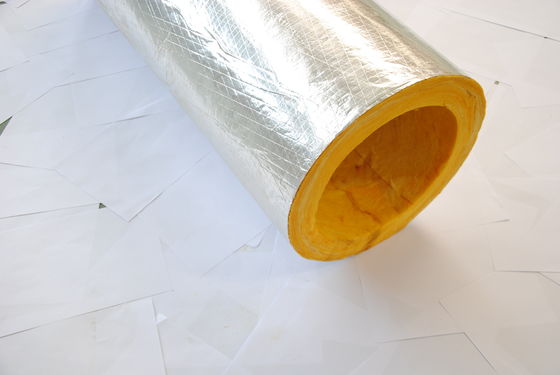

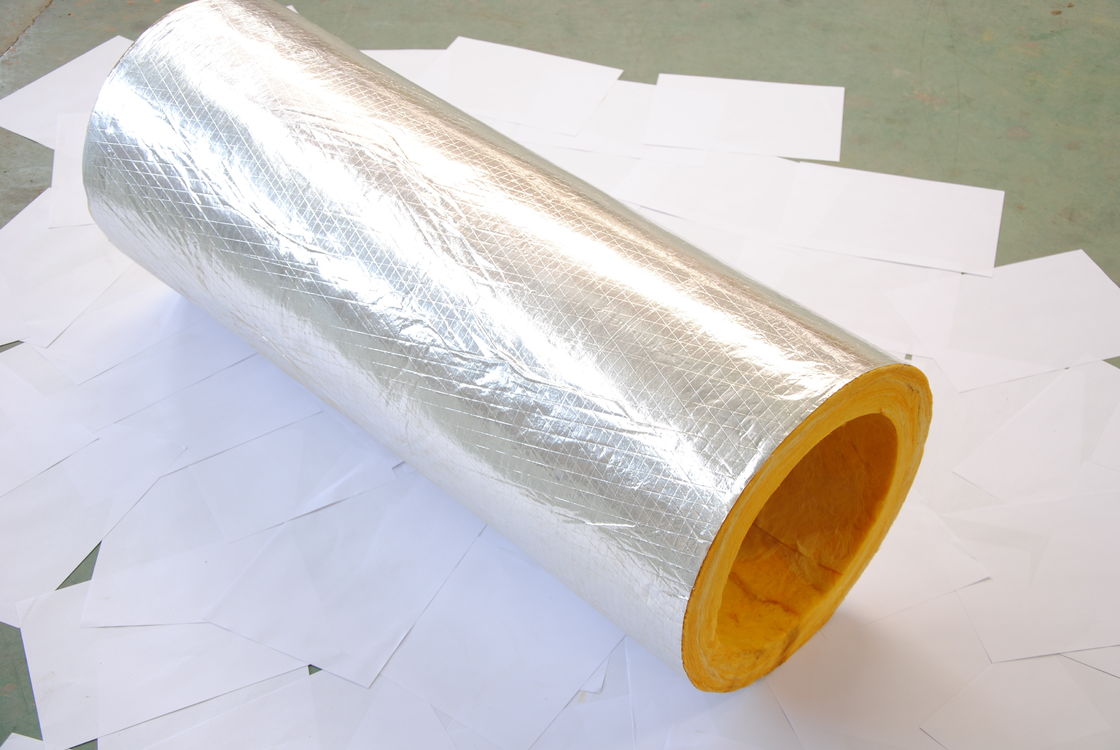

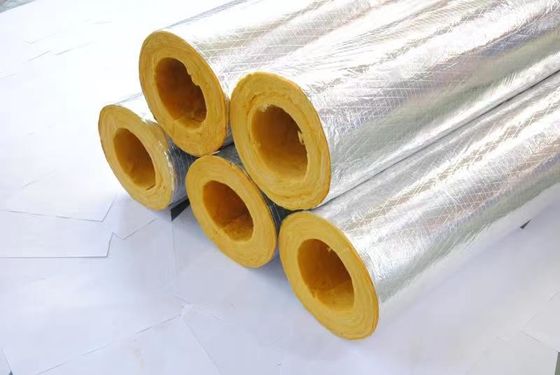

Pipe Sound-Absorbing Heat-Insulating Glass Wool Tube Aluminum Foil Veneer
Products Description
Glass wool tube is made of lime stone, quartz powder and other minerals melted in the furnace after high-speed centrifugal or jet drawing made of artificial inorganic fiber, and then through the molding equipment into a variety of products. Glass wool fire-retardant materials show very low thermal conductivity, both in high and low temperature environment can maintain good thermal insulation performance. In addition, it has good sound absorption effect, no combustion, no du gas, no corrosion, aging and so on. In addition, low water absorption, good use in humid environment.
Products Feature
1. Light weight, high strength, convenient transportation. Glass steel pipe is not only light weight, high strength, plasticity, convenient transportation and installation, but also easy to install all kinds of branch pipe, and the installation technology is simple.
2. Good aging resistance and heat resistance. Glass steel tube can be used in the temperature range of -40℃ to 70℃ for a long time, the use of special formula of high temperature resistant resin can also be used in the temperature above 200℃. Ultraviolet absorbent is added to the outer surface of the pipeline used in the open air for a long time to eliminate ultraviolet radiation to the pipeline and delay the aging of the FRP pipeline.
3. Good freezing resistance. Below minus 20℃, the tube will not freeze crack after freezing.
Application
Widely used in petroleum, chemical, metallurgy, shipbuilding, textile and other industrial boiler and equipment pipe insulation, glass wool shell can also be used for various types of cold protection, heat pipe and hidden, exposed pipe insulation.
Specification
| item | value |
| Warranty | 5 years |
| After-sale Service | Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement, Other |
| Project Solution Capability | graphic design, total solution for projects, Cross Categories Consolidation, Others |
| Application | Houses, railroad tracks, swimming pools... |
| Design Style | Industrial |
| Place of Origin | Chongiqng, China |
| Brand Name | Chongqing Haike |
| Model Number | Customized on demand |
| Type | Glass wool |
| Material | Glass wool, glass fiber |
| Product Name | Glass Wool Tube Aluminum Foil Veneer |
| Density | 10-96kg/m3 |
| Thickness | 30-100mm |
| Length | 1000mm |
| Suitable for pipe outer diameter | 600mm |
| Levels | A1 |
| Thermal Conductivity | 0.034-0.044w/mk |
| Hydrophobic | 98.2% |
| Service temperature | 600 |
| Low temperature bending ≤ | 0.02 |
