Product Details:
|
| Product Name: | Rubber Foam Insulation Pipe | Thickness: | 6-40mm |
|---|---|---|---|
| Density: | 40-70kg/m3 | Material: | Rubber-plastic |
| Thermal Conductivity: | ≤0.034w/(m.k) | Length: | 1.8m/2m |
| High Light: | Rubber Foam Insulation Pipe Flame Retardant,B1 Grade rubber foam pipe,Air Conditioning rubber foam pipe |
||

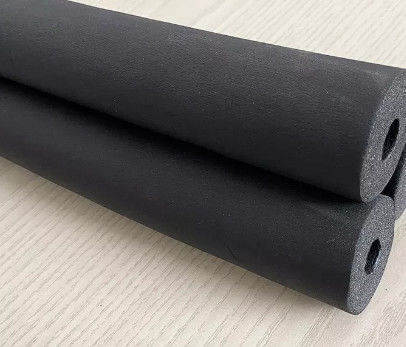

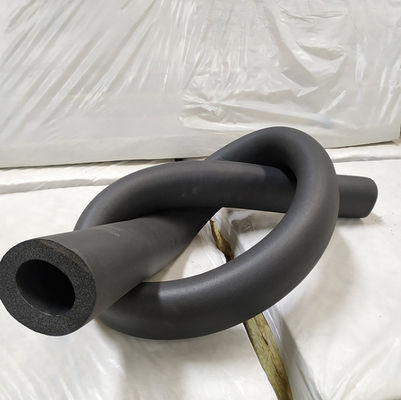

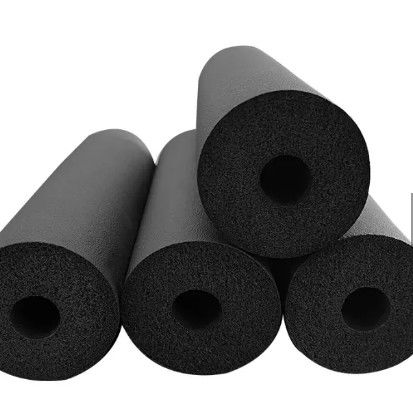

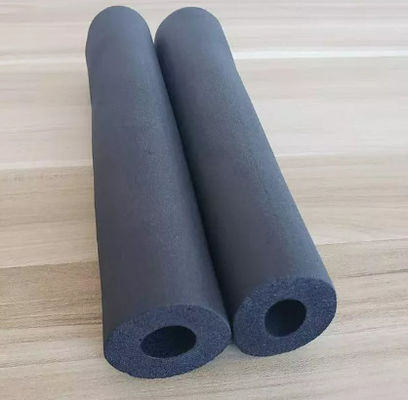

B1 Grade Air Conditioning Water Rubber Foam Insulation Pipe Flame Retardant Heat
Specification
|
item
|
value
|
|
Warranty
|
5 years
|
|
After-sale Service
|
Online technical support, Other
|
|
Project Solution Capability
|
graphic design, Others
|
|
Application
|
Office Building
|
|
Design Style
|
Industrial
|
|
Place of Origin
|
Chongqing, China
|
|
Brand Name
|
HaiKe
|
|
Type
|
Fiberglass Cloth
|
|
Material
|
Plastic
|
|
Product Name
|
Rubber Insulation Tube
|
|
Function
|
Thermal Preservation
|
|
Inner diameter
|
6-114mm
|
|
Thickness
|
6-40mm
|
|
Operating temperature
|
-20°C-90°C
|
|
Model Number
|
Rubber Foam Insulation Pipe
|
|
Density
|
40-70kg/m3
|
|
Length
|
1.8m/2m
|
|
Thermal Conductivity
|
≤0.034w/(m.k)
|
|
Material
|
Rubber-plastic
|
Products Description
The rubber-plastic insulation pipe has a low thermal conductivity and a completely closed-cell structure, which has a long-lasting heat insulation effect; the material is completely isolated from water vapor, does not absorb water, is not easy to burn, does not condense, and has a long service life. After SGS testing, its measured value is far lower than that of the European Union. It does not contain the standard value of toxic substances, and is healthy and safe to use; the appearance is soft and beautiful, easy to bend, convenient and quick to construct, and does not require other auxiliary materials.
Products feature
· Flame retardant (not easy to burn, it will go out when you leave the fire source)
· ACMF foam technology closed-cell structure can effectively prevent heat conduction
· Thermal conductivity, not more than 0.034W/m·k at 0°C.
· High surface heat dissipation coefficient, up to 9W/m2k
· Excellent resistance to water vapor penetration Moisture resistance μ≥5,000 constitutes a "built-in" waterproof vapor layer, making the insulation board as a whole both an insulation layer and a moisture-proof layer.
· Fireproof performance with aerobic index above 32
· Easy and fast installation
· Free of CFC, HFC or HCFC and other fluorocarbon materials Free of formaldehyde, dust and fiber
The rubber and plastic insulation pipe has excellent fire resistance, and the operating temperature range is -50°C to 110°C.
Application
· Central air-conditioning system refrigeration unit and equipment
· Chilled water pipe
· Condensate pipe
· Air duct and hot water pipe
